•Eight commercial-brand 55" Samsung LED (backlit) HDTV (Model #UD55C).
•Wall Layout: 4 x 2; Effective resolution: 7680 x 2160 (16.5 Mega Pixels).
•Connection from Control/Display Nodes to Display Wall: HDMI.

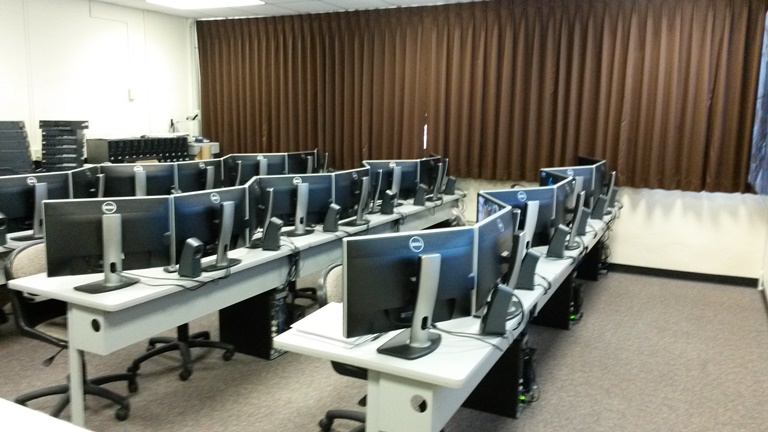

Hiperwall Visualization Cluster (Primary Control)
•Nine Dell T5600 Workstations, each connected to three 24" monitors.
•Each Node has a Dual-Four Core 3.3 GHz Xeon E5-2643 processor, 64 GB RAM and 4TB HD (36 TB in total). 2GB x 2GB RAM NVIDIA Quadro Graphics Cards; two CUDA-768 cores per node (1536 CUDA cores per node).
•Operating System: Dual-Boot Windows 7 and Scientific Linux 6.4.
Hiperwall Visulization Cluster (Secondary Control)

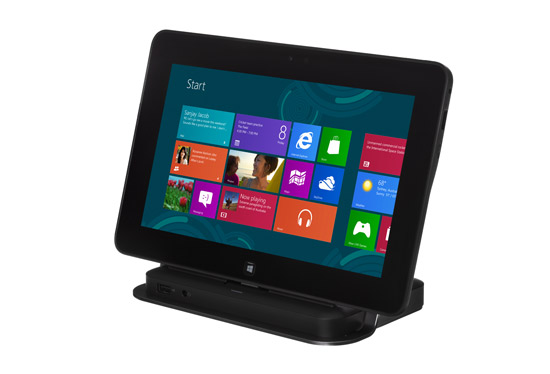

•Dell Latitude-10 Tablet (1.8 GHz Z2760 Intel Atom processor; 2GB RAM; 533 MHz Intel Graphics Media Accelerator). Sender/Streamer Nodes.

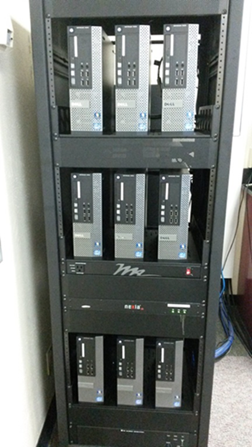

Hiperwall Visualization Cluster (Display Nodes)
•Nine Dell Optiplex 7010 (3rd Gen Intel Core 3.4GHz i7-3770 Processor; 1 GB RAM AMD RADEON HD 7570 Graphics Card (8 GB in Total; Hard Drive Space 4.5 TB).
•Operating System: Windows 7.

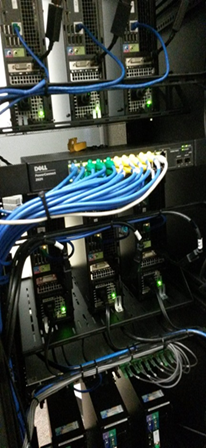

Network Switch
•One Rack-Mount Dell 24 Port 1Gbps Switch. Audio System and Amplifier.
Audio
•Six-Speaker Ceiling-Mounted Audio System.
