SUPERCOMPUTER SPECS

  • Peak Performance: 5 Teraflops

  • No. of Nodes: 51 (3 Server & 48 Compute Nodes)

  • Total Cores: 408 (8 Cores Per Node)

  • Server Node: Dell Power Edge R710

  • Compute Node: Dell Power Edge R410

  • Processor Type: Intel Xeon E5620 (All Nodes)

  • Total RAM: 1248 GB

  • Total Storage Capacity: 374 TB (200TB in RAID6)

  • Cluster Switch: 1Gbps

  • Operating System: Scientific Linux 5.4 (SL-5.4)

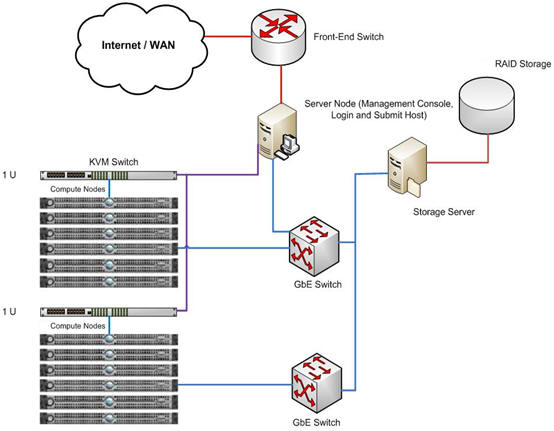

1. Head/Server Node (Compute Element-CE):  Dell Power-Edge R710 - Dual Quad Core Intel XeonE5620, 2.4Ghz, 12M Cache, Turbo, HT, 1066MHz Dual Ranked RDIMMs for 2 Processors -24GB Memory (6x4GB); 6x1TB 7.2K RPM SATA 3.5" Hot Plug HD; PERC H700 Integrated RAID Controller- 512MB Cache; RAID 5 for H700 or PERC 6/i Controllers.

2. Storage Server Node (Storage Element-SE):  Dell Power-Edge R710 - Dual Quad Core Intel XeonE5620, 2.4Ghz, 12M Cache, Turbo, HT, 1066MHz Dual Ranked RDIMMs for 2 Processors -48GB Memory (12x4GB); 2x1TB 7.2K RPM SATA 3.5" Hot Plug HD; SAS 6/iR Integrated,x6 Chassis; Broadcom 10GGbE Single Port 10GbE NIC, Copper, PCIe-8;  RAID 1 for H700, PERC 6/i, H200 or SAS 6/iR Controllers.

3. Login Server Node (User Interface-UI):  Dell Power-Edge R710 - Dual Quad Core Intel XeonE5620, 2.4Ghz, 12M Cache, Turbo, HT, 1066MHz Dual Ranked RDIMMs for 2 Processors -24GB Memory (6x4GB); 6x1TB 7.2K RPM SATA 3.5" Hot Plug HD; PERC H700 Integrated RAID Controller- 512MB Cache; RAID 5 for H700 or PERC 6/i Controllers; Broadcom NetXteme II 57711 10GbE NIC w/TOE & iSOE,Dual Port, SFP+, PCIe-8.

4. 48-Compute Nodes: Dell Power-Edge R410 - Dual Quad Core Intel XeonE5620, 2.4Ghz, 12M Cache, Turbo, HT, 1066MHz Dual Ranked RDIMMs for 2 Processors -24GB Memory (6x4GB); 2x1TB 5.4K RPM SATA 3.5" Hot Plug HD.

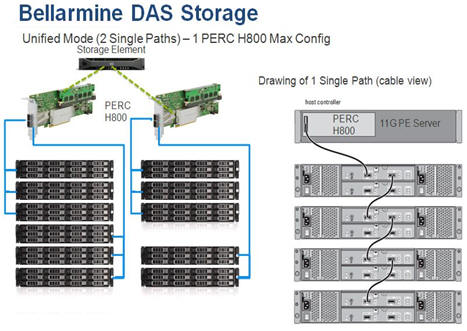

5. Storage Units: 11 MD1200 12-Bay 12x2TB 7.2K RPM SAS 6Gbps 3.5” Hot plug HD; 2xPERC H800 RAID Controllers.

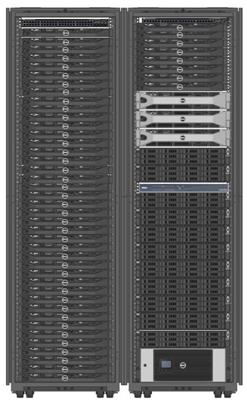

6. Racks: 2 Dell 4220 42U Racks with Doors and Side Panels; 1U KMM Console with Touchpad Keyboard and 17 LCD, One Dell UPS, 3750W, 4U, HEOnline, 208V, with L6-30P.

7. Network Switch: 2 PowerConnect 6248, 48 GbE PortManaged Switch, 10GbE and Stacking Capable.
