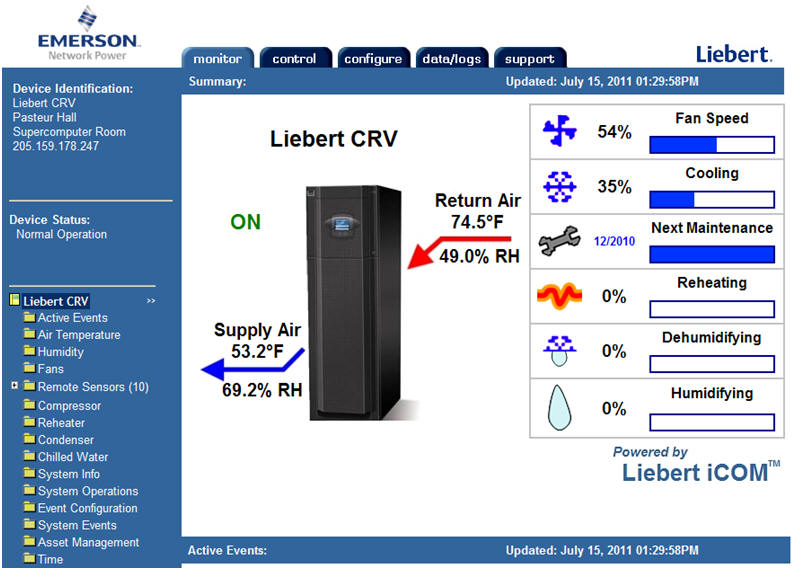

LIEBERT-CRV WEB PORTAL

A web portal has been setup to monitor the status of the Liebert CRV that is cooling the Supercomputer. The Liebert CRV is a 42U self contained, multi-option, precision data center cooling system that offers temperature and humidity control. It integrates within a row of 42U cluster racks, providing cooling close to the server heat source for efficient and effective data center management. The system features Liebert iCOM controls and a digital scroll compressor, resulting in high reliability and optimized system performance. The horizontal airflow is suitable for raised or non-raised floors. Liebert CRV uses environmentally friendly R410A refrigerant, and is available in different versions, depending on data center design requirements. Liebert CRV pulls air from the hot aisle, filters and conditions it, and then delivers cool air to the front of equipment racks. Each cluster rack has two temperature sensors mounted on the door panel to monitor the rack temperature. The Digital Scroll Compressor uses the latest control technology to deliver precise operation and significantly higher energy efficiency than other compressor technologies. In addition to the advantage of the dependable scroll design, Digital Scroll technology provides infinitely variable capacity modulation to enable the output to precisely match the changing cooling demands of the room.

Features

● 20 or 35kW air-cooled and water-glycol-cooled systems

● 40kW chilled water cooled systems

● Precision cooling and humidity control

● Installs within the row of racks

● Features variable speed EC plug fans and variable capacity digital scroll compressor

 ● Operates efficiently with Liebert iCOM controls

PCM WEB PORTAL

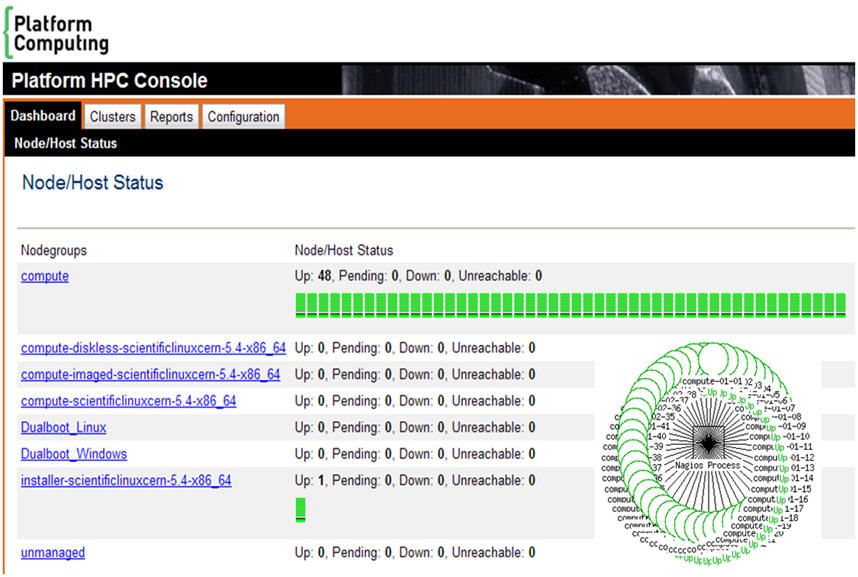

For the BU Supercomputer, we have implemented have PCM (Platform Cluster Manager) to monitor and manage the cluster on a daily basis.  Using open source components, PCM includes all the tools required to deploy, run, and manage clusters. Using PCM, we can perform operations that are simply not possible with a less advanced cluster management solution.

For details on the latest documentation updates, visit: http://my.platform.com/products/platform-cm

For a complete list of the capabilities of Platform Cluster Manager, visit: http://www.platform.com

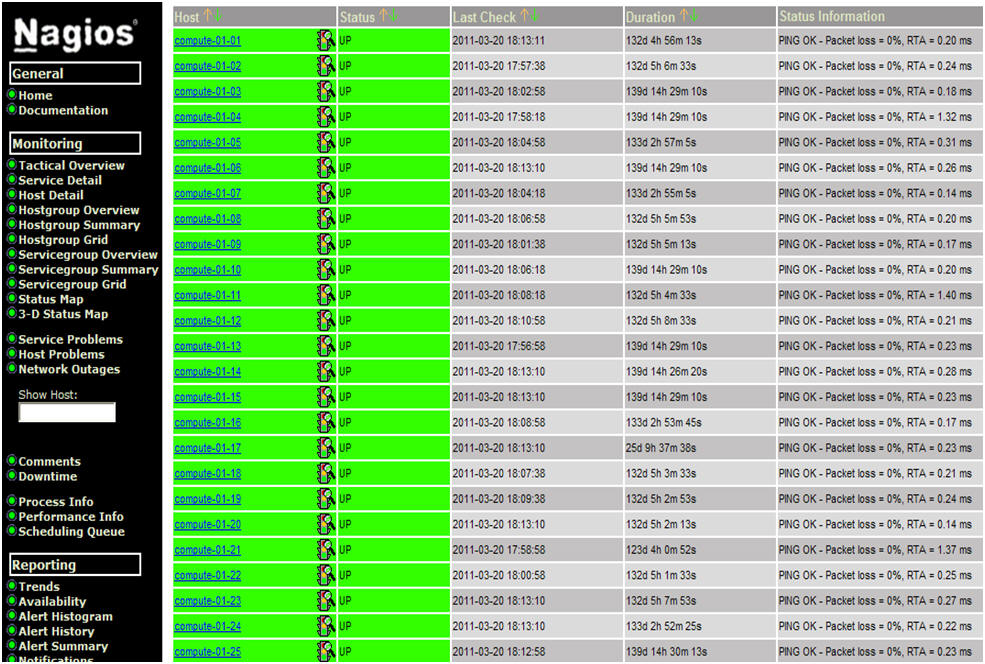

We have also implemented the Nagios (a system and network monitoring application) web portal. Nagios watches hosts and services that we specify, and alerts us when things go bad and when they get better. Nagios was originally designed to run under Linux.

For more information about Nagios click here.

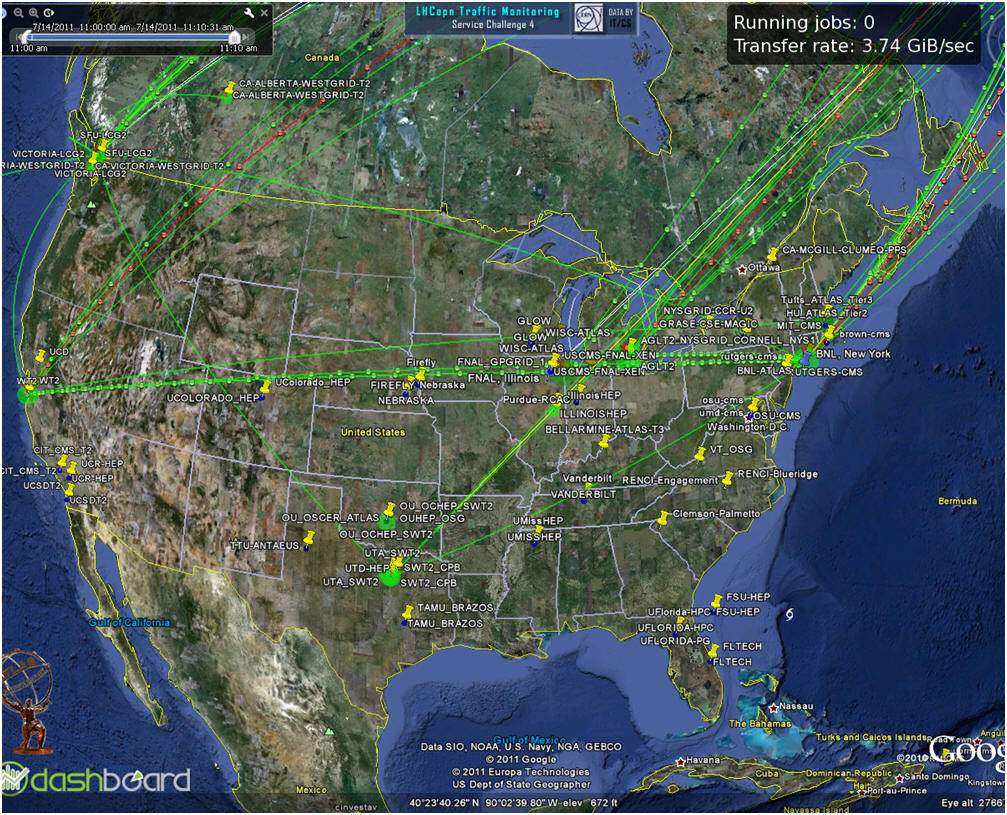

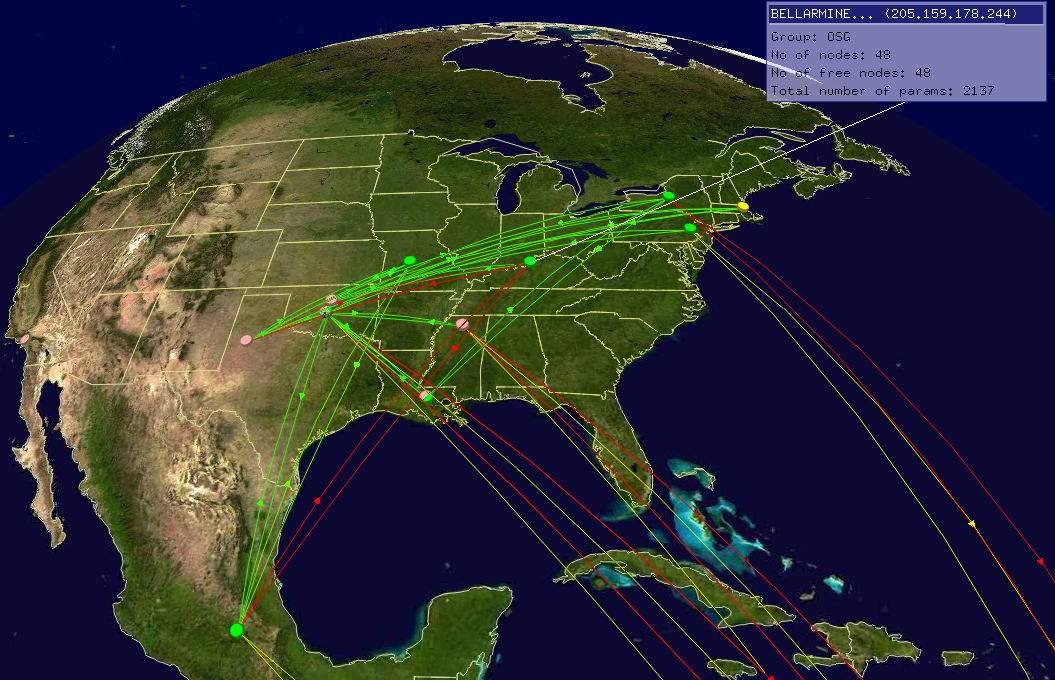

MONALISA WEB PORTAL: (OPEN SCIENCE GRID MONITORING WITH MONALISA)

MonALISA, which stands for Monitoring Agents using a Large Integrated Services Architecture, has been developed over the last four years by Caltech and its partners with the support of the U.S. CMS software and computing program. The framework is based on Dynamic Distributed Service Architecture and is able to provide complete monitoring, control and global optimization services for complex systems. The MonALISA system is designed as an ensemble of autonomous multi-threaded, self-describing agent-based subsystems which are registered as dynamic services, and are able to collaborate and cooperate in performing a wide range of information gathering and processing tasks. These agents can analyze and process the information, in a distributed way, to provide optimization decisions in large scale distributed applications. An agent-based architecture provides the ability to invest the system with increasing degrees of intelligence, to reduce complexity and make global systems manageable in real time. The scalability of the system derives from the use of multithreaded execution engine to host a variety of loosely coupled self-describing dynamic services or agents and the ability of each service to register itself and then to be discovered and used by any other services, or clients that require such information. The system is designed to easily integrate existing monitoring tools and procedures and to provide this information in a dynamic, customized, self describing way to any other services or clients.

The MonALISA framework is a fully distributed service system with no single point of failure and it provides:

(i) Distributed Registration and Discovery for Services and Applications; (ii) Monitoring all aspects of complex systems - (System information for computer nodes and clusters, Network information (traffic, flows, connectivity, topology) for WAN and LAN,  Monitoring the performance of Applications, Jobs or services, End User Systems, and End To End performance measurements); (iii) Can interact with any other services to provide in near real-time customized information based on monitoring information; (iv) Secure, remote administration for services and applications; (v) Agents to supervise applications, to restart or reconfigure them, and to notify other services when certain conditions are detected; (vi) The Agent system can be used to develop higher level decision services, implemented as a distributed network of communicating agents, to perform global optimization tasks, (vii) Graphical User Interfaces to visualize complex information; and (viii) Global monitoring repositories for distributed Virtual Organizations.

To view Total Jobs Running on each OSG Site, click the here.

To view Computing Farm Statistics for each OSG Site, click the here.

To view the Status of OSG Jobs Running on Bellarmine University's ATLAS Tier3 Supercomputer on MONALISIA, click the here.

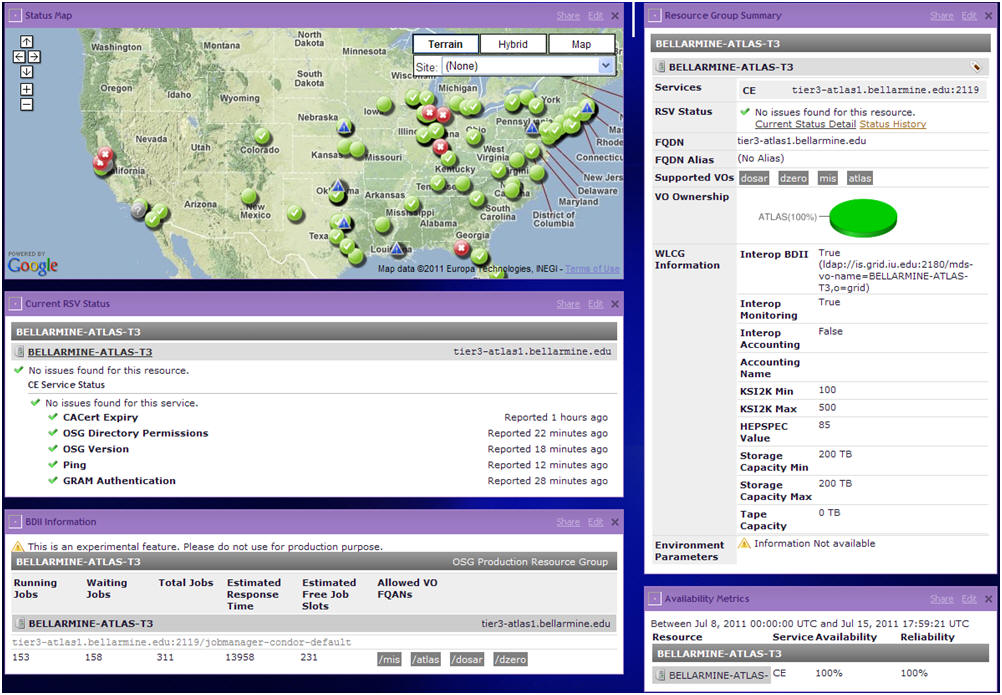

To view Bellarmine University's ATLAS Tier3 Supercomputer on the OSG Service Status Portal on MONALISIA, click the here.

To view Bellarmine University's ATLAS Tier3 Supercomputer Node Utilization on MONALISIA, click the here.

For more information about MONALISA, click here.
