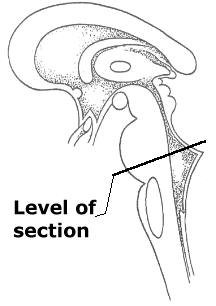

Plate XVI. Pons at the level of the abducens and facial nuclei

A. Lateral vestibular nucleus
B. Medial vestibular nucleus
C. Superior vestibular nucleus
D. Spinal trigeminal tract and nucleus
E. Facial nucleus
F. Genu of facial nerve
G. Fascicles of facial nerve
H. Abducens nerve
 I. Fascicles of abducens nerve
J. Suprageniculate nucleus
K. Medial lemniscus and trapezoid body
L. Spinal lemniscus (spinothalamic and spinotectal tracts)
M. Superior olivary nucleus
N. Lateral lemniscus
O. Ventral spinocerebellar tract
P. Medial longitudinal fasciculus
Q. Tectospinal tract
R. Central tegmental tract
S. Rubrospinal tract
T. Corticospinal and corticopontine fibers
U. Pontine nuclei
V. Pontocerebellar fibers
W. Middle cerebellar peduncle
X. Inferior cerebellar peduncle
Y. Superior cerebellar peduncle
