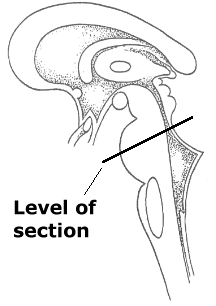

Plate XIX. Pons at level of the isthums

A. Mesencephalic tract and nucleus of trigeminal nerve
B. Ventral trigeminothalamic tract
C. Dorsal trigeminothalamic tract
D. Decusation of trochlear nerve
E. Fascicles of trochlear nerve
F. Medial lemniscus
G. Spinal lemniscus (spinothalamic and spinotectal tracts)
H. Lateral lemniscus
 I. Dorsal nucleus of lateral lemniscus
J. Dorsal longitudinal fasciculus
K. Medial longitudinal fasciculus
L. Tectospinal tract
M. Central tegmental tract
N. Rubrospinal tract
O. Corticospinal and corticopontine fibers
P. Pontine nuclei
Q. Pontocerebellar fibers
R. Middle cerebellar peduncle
S. Superior cerebellar peduncle
T. Decussation of superior cerebellar peduncle
U. Cerebral aqueduct
