zoom inprevious plate

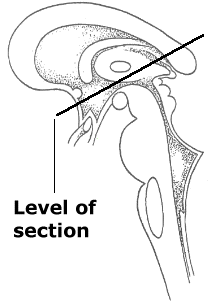

Plate XXVII. Section through lateral ventral nucleus of thalamus

A. Putamen
B. Globus pallidus
C. Ansa lenticularis
D. Lenticular fasciculus
E. Subthalamic fasciculus
F. Prerubral field
G. Zona incerta
H. Thalamic fasciculus
 I. Central nucleus of thalamus
J. Posterolateral nucleus of thalamus
K. Ventral posterior lateral nucleus of thalamus
L. Ventral posterior medial nucleus of thalamus
M. Lateral ventral nucleus of thalamus
N. Dorsomedial nucleus of thalamus
O. Midline nuclei of thalamus
P. Reticular nuclei of thalamus
Q. Internal medullary lamina
R. External medullary lamina
S. Stria medullaris thalami
T. Mammillothalamic fasciculus
U. Fornix
V. Hypothalamus
W. Third ventricle
X. Internal capsule
Y. Cerebral peduncle (Basis pedunculi)
