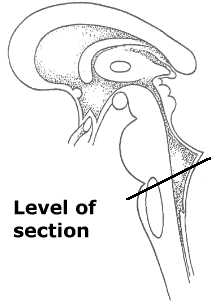

Plate XII. Medulla oblongata at the level of the vestibular division of the vestibulocochlear nerve

A. Fascicles of vestibular portion of vestibulocochlear nerve
B. Lateral vestibular nucleus
C. Medial vestibular nucleus
D. Superior vestibular nucleus
E. Vestibulocerebellar fibers
F. Juxtarestiform body
G. Inferior cerebellar peduncle
H. Middle cerebellar peduncle
 I. Nucleus propositus
J. Dorsal longitudinal fasciculus
K. Facial nucleus
L. Spinal trigeminal tract
M. Spinal trigeminal nucleus
N. Pyramidal (corticospinal) tract
O. Rubrospinal tract
P. Ventral spinocerebellar tract
Q. Spinal lemniscus (spinothalamic and spinotectal tracts)
R. Central tegmental tract
S. Inferior olivary nucleus
T. Medial longitudinal fasciculus
U. Tectospinal tract
V. Medial lemniscus
