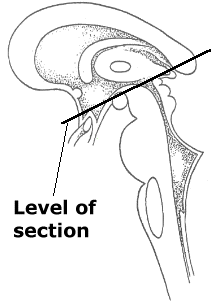

Plate XXV. Section through the habenular commissure and mammillary bodies

A. Optic tract
B. Internal capsule
C. Cerebral peduncle (Basis pedunculi)
D. Globus pallidus
E. Subthalamic nucleus
F. Zona incerta
G. Prerubral field
H. Red nucleus
 I. Substantia nigra
J. Central nucleus of thalamus
K. Ventral posterior medial nucleus of thalamus
L. Ventral posterior lateral nucleus of thalamus
M. Pulvinar
N. Habenular commissure
O. Habenular nucleus
P. Habenulopeduncular
Q. Mammillothalamic fasciculus
R. Mammillary body
S. Hypothalamus
T. Third ventricle
U. Infundibular recess
V. Optic recess
