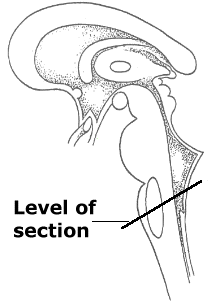

Plate IX. Medulla oblongata at a mid-olivary level

A. Lateral cuneate nucleus
B. Dorsal external arcuate fibers
C. Inferior vestibular nucleus
D. Medial vestibular nucleus
E. Dorsal motor nucleus of vagus
F. Solitary fasciculus
G. Solitary nucleus
H. Nucleus ambiguus
 I. Fascicles of glossopharyngeal nerve
J. Hypoglossal nucleus
K. Fascicles of hypoglossal nerve
L. Dorsal longitudinal fasciculus
M. Central tegmental tract
N. Inferior olivary nucleus
O. Medial accessory olivary nucleus
P. Dorsal accessory olivary nucleus
Q. Olivocerebellar fibers
R. Inferior cerebellar peduncle
S. Spinal trigeminal tract
T. Spinal trigeminal nucleus
U. Ventral trigeminothalamic tract
V. Pyramidal (corticospinal) tract
W. Rubrospinal tract
X. Ventral spinocerebellar tract
Y. Spinal lemniscus (spinothalamic and spinotectal tracts)
Z. Mendia longitudinal fasciculus
a. Tectospinal tract
b. Medial lemniscus
c. Vagus nerve
d. Inferior salivatory nucleus
