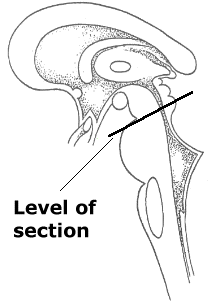

Plate XX. Midbrain at level of inferior colliculus

A. Mesencephalic tract and nucleus of trigeminal nerve
B. Ventral trigeminothalamic tract
C. Dorsal trigeminothalamic tract
D. Fascicles of trochlear nerve
E. Medial lemniscus
F. Spinal lemniscus (spinothalamic and spinotectal tract)
G. Lateral lemniscus
H. Nucleus of inferior colliculus
 I. Medial longitudinal fasciculus
J. Tectospinal tract
K. Central tegmental tract
L. Rubrospinal tract
M. Frontopontine tract
N. Corticospinal tract
O. Corticopontine tract (minus frontopontines)
P. Aberrant corticobulbar tract
Q. Middle cerebellar peduncle
R. Substantia nigra
S. Superior cerebellar peduncle
T. Decussation of superior cerebellar peduncle
U. Cerebral aqueduct
V. Interpeduncular fossa
