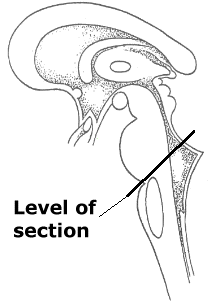

Plate XIV. Pons at the level of the facial nucleus and nerve

A. Lateral vestibular nucleus
B. Medial vestibular nucleus
C. Superior vestibular nucleus
D. Middle cerebellar peduncle
E. Spinal trigeminal tract
F. Spinal trigeminal nucleus
G. Facial nucleus
H. Genu of facial nerve
 I. Facial nerve
J. Abducens nucleus
K. Suprageniculate nucleus
L. Dorsal longitudinal fasciculus
M. Central tegmental tract
N. Inferior olivary nucleus (rostral end)
O. Pontine nuclei
P. Medial longitudinal fasciculus
Q. Tectospinal tract
R. Medial lemniscus
S. Superior olivary nucleus
T. Pyramidal (corticospinal) tract
U. Ventral trigeminothalamic tract
V. Spinal lemniscus (spinothalamic and spinotectal tracts)
W. Rubrospinal tract
X. Inferior cerebellar peduncle
Y. Ventral spinocerebellar tract
