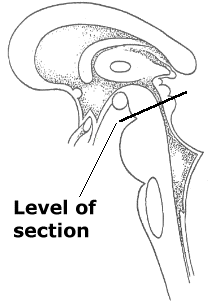

Plate XXI. Midbrain at level of trochlear nucleus

A. Mesencephalic tract and nucleus of trigeminal nerve
B. Ventral trigeminothalamic tract
C. Dorsal trigeminothalamic tract
D. Trochlear nucleus
E. Medial lemniscus
F. Spinal lemniscus (spinophalamic and spinotectal tract)
G. Lateral lemniscus
H. Nucleus of inferior colliculus
 I. Commissure of inferior colliculus
J. Brachium of inferior colliculus
K. Medial longitudinal fasciculus
L. Tectospinal tract
M. Central tegmental tract
N. Corticopontine tract (minus frontopontines)
O. Corticospinal tract
P. Frontopontine tract
Q. Aberrant corticobulbar tract
R. Rubrospinal tract
S. Substantia nigra
T. Interpeduncular nucleus
U. Superior cerebellar peduncle
V. Decussation of superior cerebellar peduncle
W. Cerebral aqueduct
