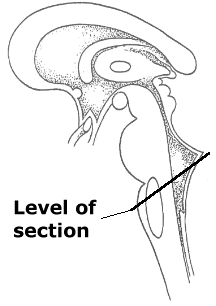

Plate XIII. Medulla oblongata at the level of the ventral cochlear nucleus (please note: this section is from a brain cut at a different angle that the rest of the series)

A. Inferior cerebellar peduncle
B. Middle cerebellar peduncle
C. Superior cerebellar peduncle
D. Dentate nucleus
E. Emboliform nucleus
F. Globose nucleus
G. Fastigial nucleus
H. Cerebellar commissure
 I. Lateral vestibular nucleus
J. Medial vestibular nucleus
K. Superior vestibular nucleus
L. Cochlear division of vestibulocochlear nerve
M. Ventral cochlear nuclus
N. Spinal trigeminal tract
O. Spinal trigeminal nucleus
P. Ventral spinocerebellar tract
Q. Spinal lemniscus (spinothalamic and spinotectal tracts)
R. Central tegmental tract
S. Inferior olivary nucleus
T. Pyramidal (corticospinal) tract
U. Medial longitudinal fasciculus
V. Tectospinal tract
W. Medial lemniscus
X. Dorsal longitudinal fasciculus
