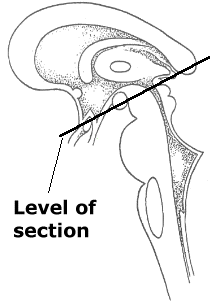

Plate XXIV. Section through posterior commissure and mammillary bodies

A. Optic chiasm
B. Optic tract
C. Lateral geniculate body
D. Posterior commissure
E. Pretectal area
F. Nucleus of Darkschewitsch
G. Interstitial nucleus
H. Medial longitudinal fasciculus
 I. Red nucleus
J. Habenulopeduncular fasciculus
K. Mammillary body
L. Tuber cinereum
M. Infundibular recess
N. Cerebral peduncle (Basis pedunculi)
O. Substantia nigra
P. Medial geniculate body
Q. Pulvinar
R. Pineal body
S. Cerebral aqueduct
