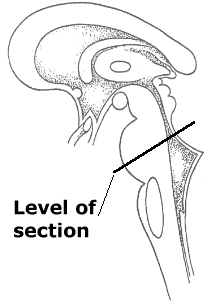

Plate XVII. Pons at the level of the trigeminal nerve

A. Fascicles of trigeminal nerve
B. Mesencephalic tract and nucleus of trigeminal nerve
C. Chief sensory nucleus of trigeminal nerve
D. Motor nucleus of trigeminal nerve
E. Ventral trigeminothalamic tract
F. Dorsal trigeminothalamic tract
G. Superior vestibular nucleus
H. Genu of facial nerve
 I. Medial lemniscus
J. Spinal lemniscus (spinothalamic and spinotectal tracts)
K. Ventral nucleus of lateral lemniscus
L. Lateral lemniscus
M. Dorsal longitudinal fasciculus
N. Medial longitudinal fasciculus
O. Tectospinal tract
P. Central tegmental tract
Q. Rubrosponal tract
R. Corticospinal and corticopontine fibers
S. Pontocerebellar fibers
T. Middle cerebellar peduncle
U. Superior cerebellar peduncle
