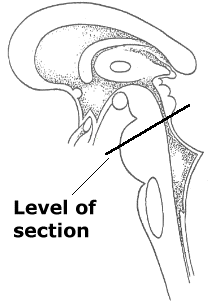

Plate XVIII. Level of upper third of the pons

A. Mesencephalic tract and nucleus of trigeminal nerve
B. Ventral trigeminothalamic tract
C. Dorsal trigeminothalamic tract
D. Medial lemniscus
E. Spinal lemniscus (spinothalamic and spinotectal tract)
F. Ventral nucleus of lateral lemniscus
G. Lateral lemniscus
H. Dorsal longitudinal fasciculus
 I. Medial longitudinal fasciculus
J. Tectospinal tract
K. Central tegmental tract
L. Rubrospinal tract
M. Corticospinal and corticopontine fibers
N. Pontine nuclei
O. Pontocerebellar fibers
P. Middle cerebellar peduncle
Q. Superior cerebellar peduncle
R. Anterior spinocerebellar tract
S. Anterior medullary velum
T. Forth ventricle
