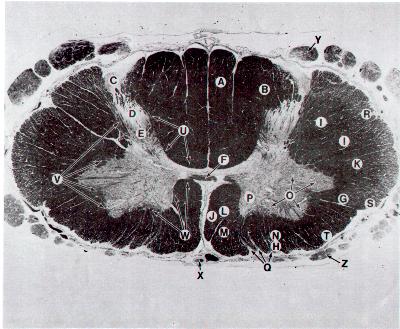

Plate IV. Spinal cord at the level of the cervical enlargement

A. Gracile fasciculus
B. Cuneate fasciculus
C. Dorsolateral fasciculus (Lissauer's tract)
D. Substantia gelatinosa
E. Posterior funicular gray (nucleus proprius)
F. Anterior white commissure
G. Lateral spinothalamic tract
H. Anterior spinothalamic tract
 I. Lateral corticospinal tract
J. Anterior corticospinal tract
K. Rubrospinal tract
L. Medial longitudinal fasciculus
M. Tectospinal tract
N. Lateral vestibulospinal tract
O. Lateral motor nuclei
P. Medial motor nuclei
Q. Fascicles of vertral root of spinal nerve
R. Dorsal spinocerebellar tract
S. Ventral spinocerebellar tract
T. Spino-olivary tract
U. Posterior propriospinal tract
V. Lateral propriospinal tract
W. Anterior propriospinal tract
X. Anterior spinal tract
Y. Dorsal root of spinal nerve
Z. Ventral root of spinal nerve
